Name: Articulated Telescopic Wheel Loader TL4000 4 Tons Full Hydraulic
Brand: HORNQUIP
Price: 1 USD

Brand Name : HORNQUIP

Model Number : TL4000

Certification : CE

Place of Origin : China

Rated Load : 4,000 kg

Bucket Capacity : 2m³

Operating Weight : 10,000 kg

Tyre : 17.5-25

Contact Now

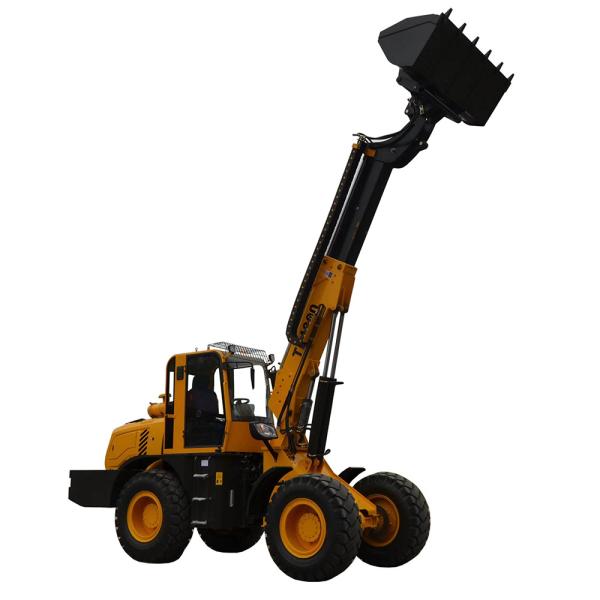

TL4000 telescopic boom wheel loader
Technical specification
Bucket capacity	2 m³
Rated load	4000 kg
Overall size	780024003250mm
Operating weight	10000KG
Bucket hinge pin Height	5500mm
Telescopic stroke	1330mm
Extend the arm length	3400mm
Max. bucket lift height	6500mm
Max. dumping height	4500mm
Engine
Brand / model	Weichai DEUTZ WP6G175E22
Type	In-line, water-cooled, six cylinder
Rated power	129 kw
Steering system
Type	Full-hydraulic, articulated
Transmission system
Torque converter type	Single phase, hydraulic converter
Gear shift	4 forward, 4 reverse
Max. speed	39 km/h
Axle	35G
Tyre size	17.5-25
Drive model	four-wheel drive
System pressure	16 Mpa
Brake system
Service brake	Gas cap oil disc brake on 4 wheels
Parking brake	Hand operated disc brake
